Examples of Quick-Build Bicycle Improvements

Bike Lanes (Class II or Class IV)

A green-painted bike lane is bordered by a white-striped buffer and plastic posts
Image: Metropolitan Transportation Commission

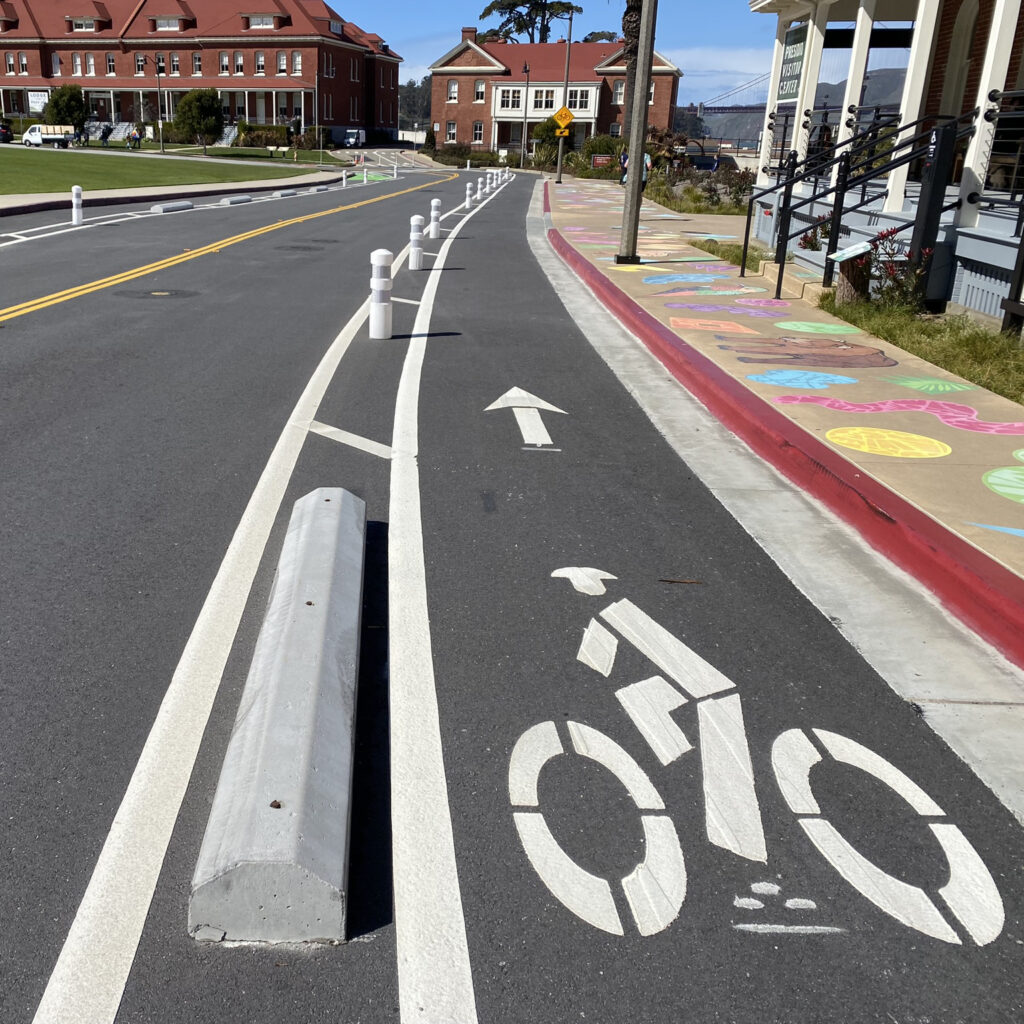

A bike lane with a bicycle stenciled in white paint is bordered by white-painted concrete curbs, plastic posts, and a brightly painted sidewalk
Image: City of Orlando, FL

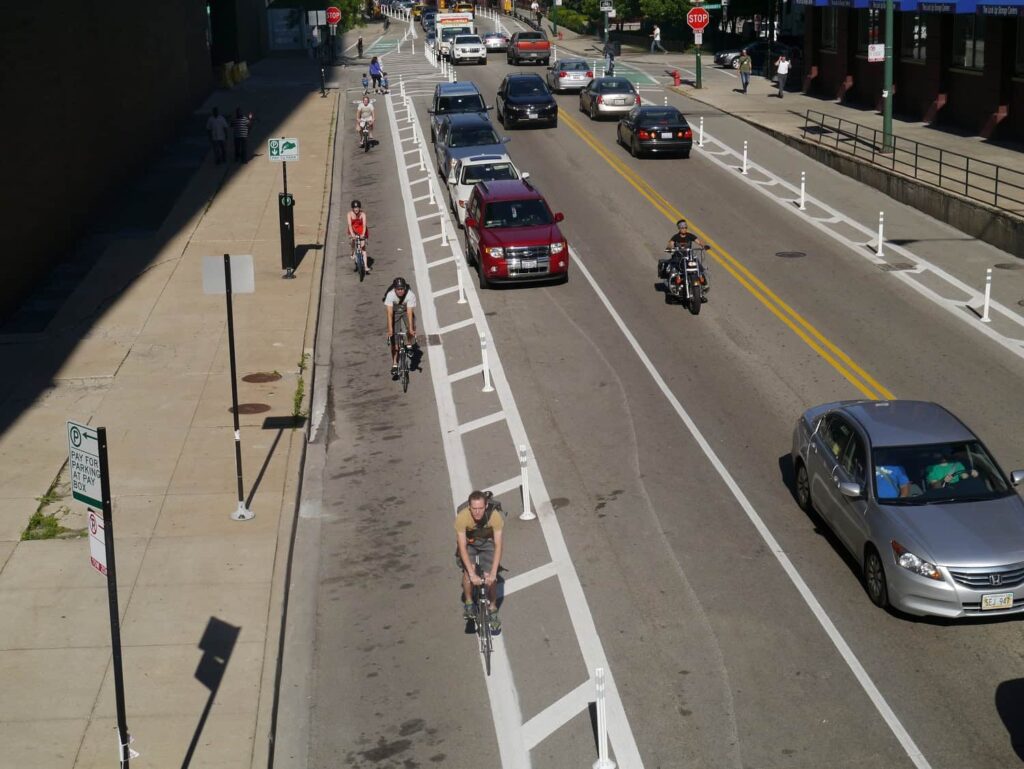

A road with two lanes of car traffic and a lane of parking, with a bike lane between the sidewalk and the parked cards. A white striped buffer and some plastic posts are between the parking lane and the bike lane.
Image: Bike PGH

Protected Intersections

A large 4-way intersection with green-painted bike lanes along all streets, protected at the corners by green plastic posts
Image: CalBike

Intersection Daylighting

An urban intersection with yellow striped paint prohibiting parking on either side of the street near the corner
Image: Streetfilms

Traffic Volume Management or Filtering for Bike Boulevards

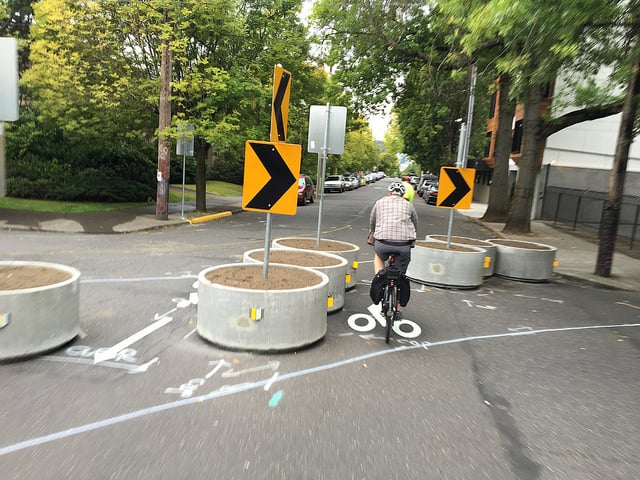

A person bikes between concrete planters with traffic signs in them on a tree-lined street
Image: BikePortland

Bike Parking

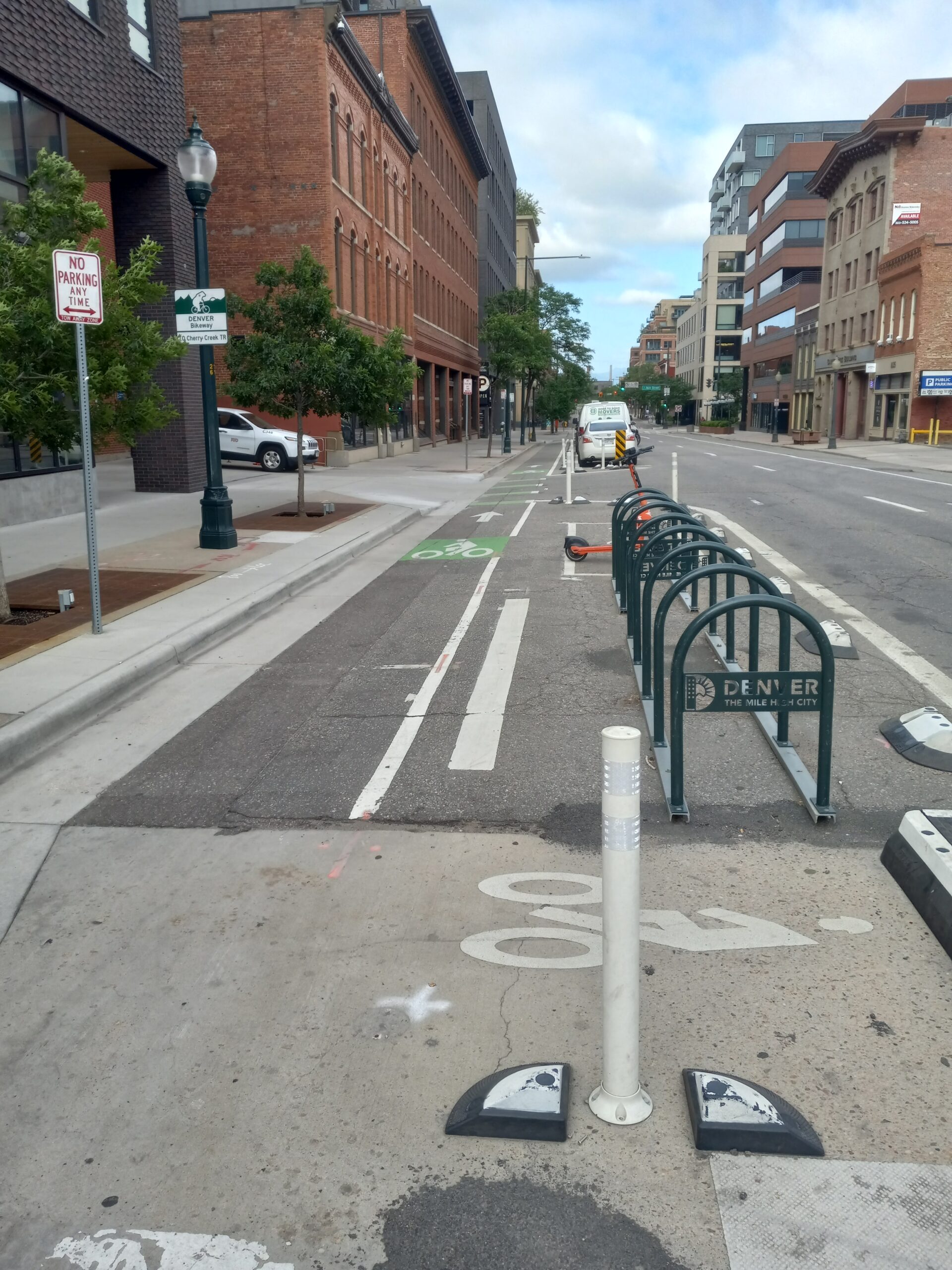

A city street between mostly brick, 3-story buildings has a row of metal inverted-U shaped bike racks in a converted parking spot, with low plastic humps and flexible posts between the bike parking and the street, and a bike lane between the bike parking and the sidewalk
Image: CRTP

Signage on Existing Posts

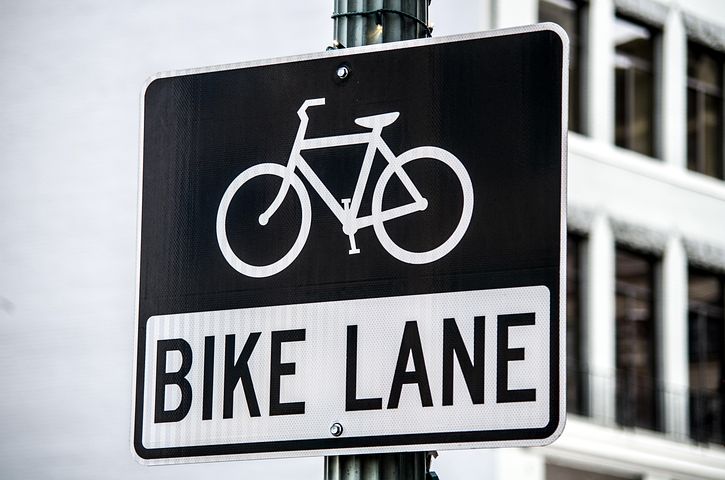

A sign with a stencil of a bike and the words "bike lane" is attached to a decorative post
A bike wayfinding sign from San Francisco is attached to a metal post
Image: San Francisco Bicycle Coalition

Some Available Materials

Paint

Bollards

Delineators

Concrete or water-filled plastic barriers

Planters

“Armadillos” and other low plastic barriers

Bike racks

Regulatory and way-finding signs
